KINETIC LED DISPLAY TECHNOLOGY

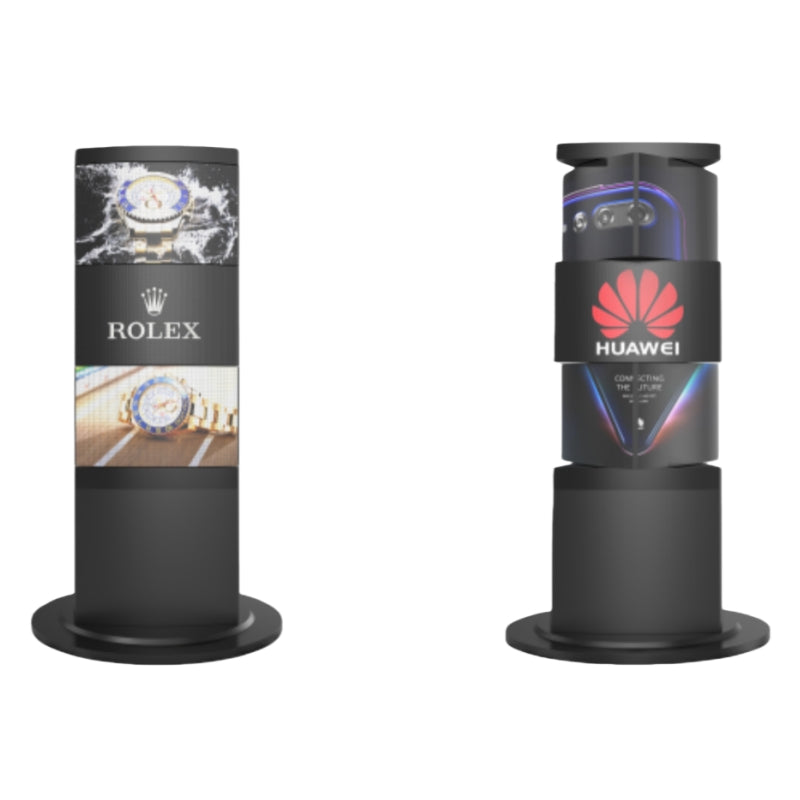

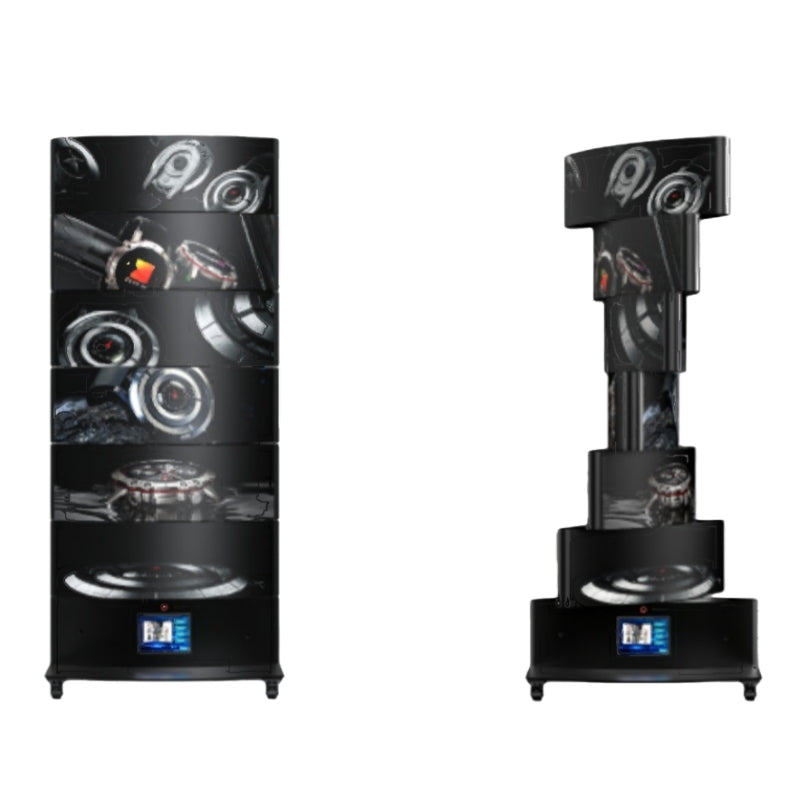

Rotating Mechanical LED Display Screen
Elevate your brand presentation with our flagship Rotating Mechanical LED Display Screen[cite: 2]. Engineered with high-precision mechanical rotation layers and ultra-flexible LED module technology, this dynamic video wall brings static advertising to life[cite: 2]. Designed for high-end commercial applications, luxury boutiques, automotive showrooms, and exhibition centers, it delivers an unforgettable visual spectacle with seamless 360-degree rotation and 3D movement effects.
Key Advantages at a Glance:
- 3D Dynamic Kinetic Motion: Multi-layer independent rotation creates mesmerizing physical visual movement synced with your video content[cite: 2].
- High-Precision Flexible LED Modules: Utilizes advanced indoor P2 and P3 GOB flexible modules for smooth cambered or flat surface display.
- Intelligent Smart Control: Effortlessly adjust rotation modes, speeds, and power via integrated touchscreens or mobile devices.
- Seamless Content Management: Supports wireless content uploads via Tablet, PC, and wireless transmission systems.
- Custom Modular Configurations: Available in 3-layer, 5-layer, 6-layer, and 10-layer setups to match any architectural height and requirement.
Core Product Features
1. Precision Mechanical Layer Rotation
Each rotation layer operates independently with customizable rotation modes and adjustable moving speeds. Whether expanding, rotating, or aligning to form a continuous screen, the mechanical system operates smoothly and quietly to engage audiences from all angles.
2. Premium Visual Quality (GOB Flexible Modules)
Equipped with high-refresh P2/P3 flexible LED panels with optional GOB (Glue on Board) protection technology, delivering enhanced impact resistance, wide viewing angles, vibrant contrast, and crystal-clear high-definition images.
3. Smart Touch & Remote Operating System
Take full control of display operations. Switch display modes, control rotation speeds, schedule power cycles, and push new video imagery instantaneously through wireless uploading software via smartphones, tablets, or computers.
Technical Specifications & Model Comparison
Explore our standard mechanical LED screen models below to select the ideal scale and configuration for your space:
| Detail / Specification | 3 Layers 3 Faces (Standard P2) | 5 Layers 3 Faces (Indoor P2) | 6 Layers 2 Faces (Indoor P2) | 10 Layers 1 Face (Indoor P2) | Giant 3 Layers 3 Faces (Indoor P3 GOB) | Giant Transformable 3 Layers 4 Faces | Giant Cube 3 Layers 4 Faces (Indoor P3) |
|---|---|---|---|---|---|---|---|
| Display Model | Indoor P2[cite: 2] | Indoor P2[cite: 2] | Indoor P2[cite: 2] | Indoor P2[cite: 2] | Indoor P3 (Optional)[cite: 2] | Indoor P3 (Optional)[cite: 2] | Indoor P3 (Optional)[cite: 2] |
| Module Specification | Flexible Module 320x160mm[cite: 2] | Flexible Module 320x160mm[cite: 2] | Flexible Module 320x160mm[cite: 2] | Flexible Module 320x160mm[cite: 2] | Flexible Module 320x160mm (GOB Standard)[cite: 2] | Flexible Module 320x160mm[cite: 2] | Flexible Module 320x160mm (GOB Standard)[cite: 2] |
| Layers & Faces | 3 Layers / 3 Faces[cite: 2] | 5 Layers / 15 Faces[cite: 2] | 6 Layers / 12 Faces[cite: 2] | 10 Layers / 1 Face[cite: 2] | 3 Layers / 9 Faces[cite: 2] | 3 Layers / 12 Faces[cite: 2] | 3 Layers / 12 Faces[cite: 2] |
| Dimensions (L x W x H) | 640 x 640 x 2060 mm[cite: 2] | 640 x 640 x 2150 mm[cite: 2] | 960 x 320 x 2350 mm[cite: 2] | 960 x 188 x 3700 mm[cite: 2] | 960 x 960 x 2900 mm[cite: 2] | 1280 x 1280 x 4800 mm[cite: 2] | 960 x 960 x 2990 mm[cite: 2] |
| Single Face Size | 640 x 320 mm / face[cite: 2] | 640 x 320 mm / face[cite: 2] | 960 x 320 mm / face[cite: 2] | 960 x 320 mm / face[cite: 2] | 960 x 600 mm / face[cite: 2] | 1280 x 800 mm / face[cite: 2] | 960 x 320 mm / face[cite: 2] |
| Total Display Size | 1920 x 960 mm[cite: 2] | 1920 x 1600 mm[cite: 2] | 1920 x 1920 mm[cite: 2] | 960 x 3200 mm (3.07 m²)[cite: 2] | 2880 x 1800 mm (5.18 m²)[cite: 2] | 5120 x 2400 mm (5.18 m²)[cite: 2] | 3840 x 960 mm (3.68 m²)[cite: 2] |
| Surface Appearance | Cambered Surface (Wide View)[cite: 2] | Cambered Surface (Wide View)[cite: 2] | Cambered Surface (Wide View)[cite: 2] | Wide View Flat/Cambered[cite: 2] | Cambered Surface (Wide View)[cite: 2] | Cambered / Transformable[cite: 2] | Cube / Flat Surface[cite: 2] |
| Weight | ~280 KG[cite: 2] | ~310 KG[cite: 2] | ~310 KG[cite: 2] | ~450 KG[cite: 2] | ~1100 KG[cite: 2] | ~2270 KG[cite: 2] | ~550 KG[cite: 2] |
| Max Power Consumption | 2.3 KW[cite: 2] | 3.8 KW[cite: 2] | 4.6 KW[cite: 2] | 5.8 KW[cite: 2] | 4.2 KW / 4.3 KW[cite: 2] | 11.9 KW[cite: 2] | 3.4 KW[cite: 2] |
| Rotating & Control Mode | Default & Custom Rotating Modes | Adjustable Speed according to video content[cite: 2] | ||||||
| Control Method | Touchscreen Control, Mobile Phone App, Wireless Tablet & PC Uploading[cite: 2] | ||||||
| Power Supply | 220V / 380V Power Only[cite: 2] | ||||||
| Installation | Includes Heavy-Duty Rotating Base Chassis[cite: 2] | ||||||
Applications & Environments
The Rotating Mechanical LED Screen is engineered to create immersive digital experiences across high-traffic environments:
- Luxury Flagship Stores & Jewelry Outlets: Display watches, cosmetics, and apparel with high-end rotating motion mechanics.
- Automotive Experience Centers: Feature dynamic car specs and dynamic rotating media displays.
- Corporate Lobby & Exhibition Centers: Serve as an eye-catching interactive centerpiece for visitors.
- Airports & High-End Commercial Complexes: Maximize ad engagement and ROI with dynamic 3D kinetic advertising.
